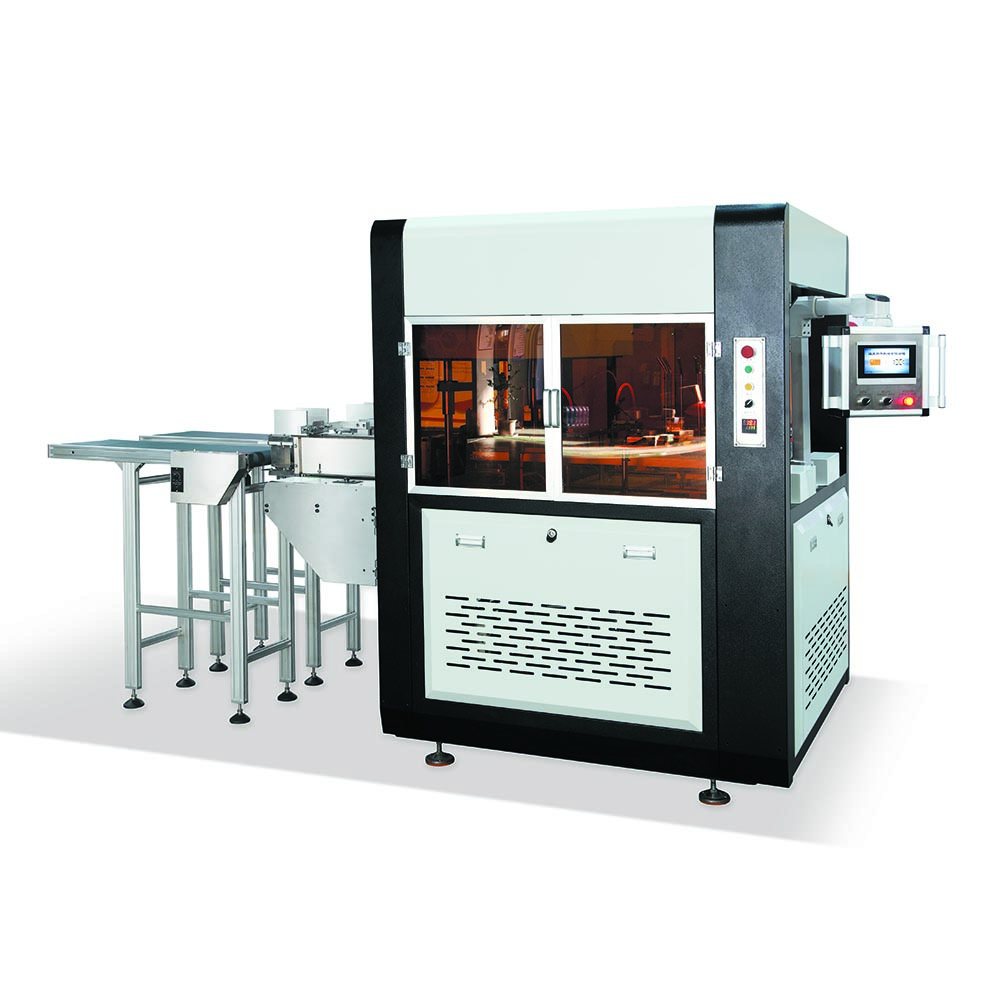

BJ-CHR full automatic paper box forming machine is an ideal equipment for making single/double PE coated paper boxes . it has speed faster ,operation easier etc advantages .
Brief：
BJ-CHR full automatic paper box forming machine is an ideal equipment for making single/double PE coated paper boxes . it has speed faster ,operation easier etc advantages .

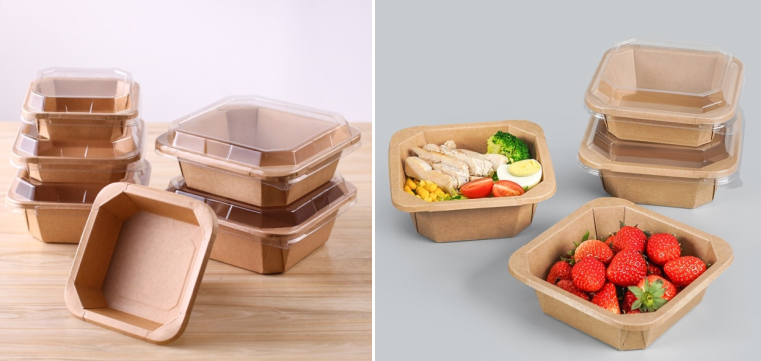

This machine adopts automatic paper feeding , heating (with hot air device), paper former(sealing box 4 corners), automatic counting & collection , microcomputer controller etc making process ,and fit for making disposable simple 4 corners paper lunch box /tray with deep <=4cm
Main technical datas
|
Suitable material: |
100-400gsm PE coated paper |
|
Production speed: |
35-50pcs/min |
|
Max paper convey width: |
370mm |
|
Maximum paper size: |
370*300mm |
|
Total power: |
8KW |
|
Total weight: |
800KGS |
|
Overall dimension： |
2500*800*2000mm |
|
Power source: |
380V/220V, 50HZ |
|
Working Air Source:
|
Air pressure 0.6 Mpa-0.8Mpa (need buy air compressor) Working gas consumption: 0.8-1.0 m3/min |
